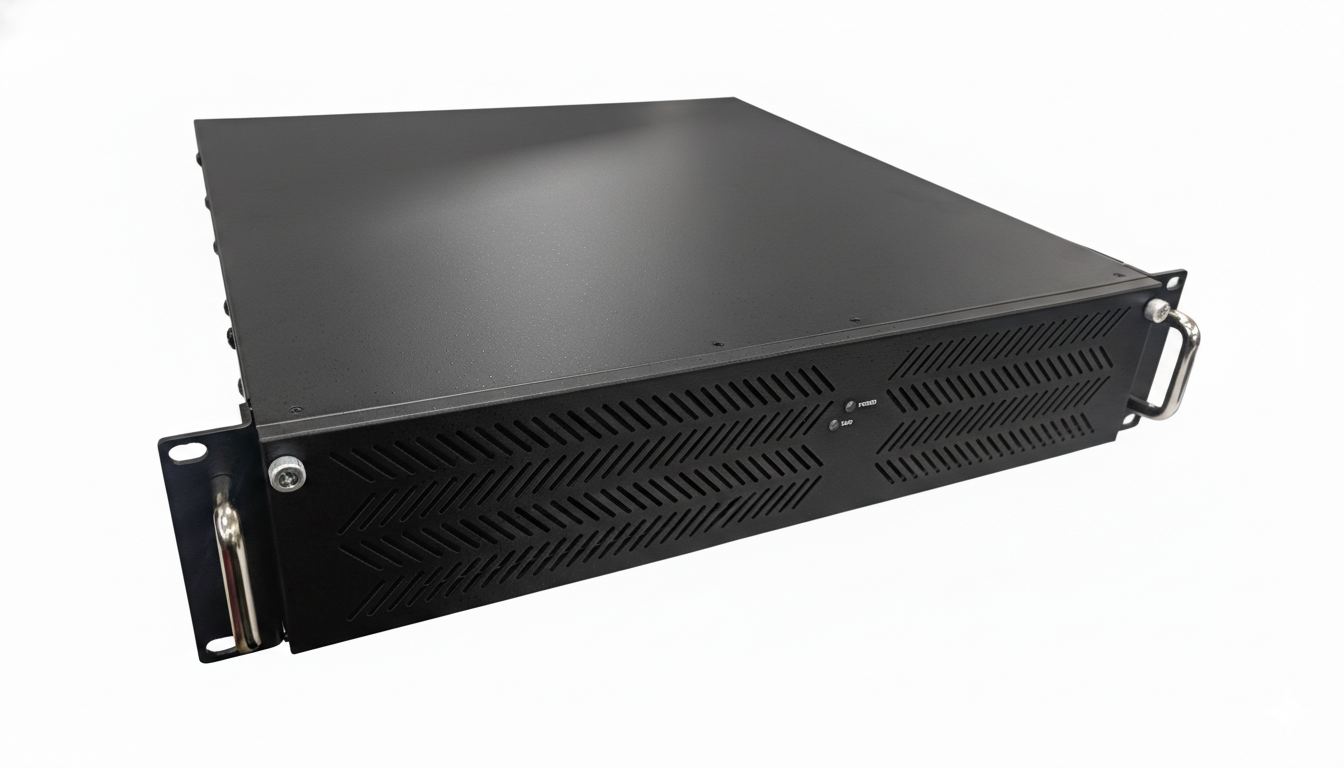

VAI-PAS
Edge Computing Systems
- IEC 61850-3 and IEEE 1613 compliant (TBD)
- LGA 1700 Socket Processors
- 4 DDR5 UDIMM, up to 192GB
- 4 DisplayPorts, up to 4K resolution
- PCIe x16, 2 M.2 M-key, 1 M.2 A-key, 1 M.2 E-key
- 4 2.5 GbE LAN, 6 COM, 8 USB 3.2
- Supports 2.5GbE LAN x 2 (Intel® TSN supported)
- Redundant power supplier for system power backup
| Processor | Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W |
| Chipset | Intel® R680E Chipset |
| Memory | Four 288-pin UDIMM up to 192GB (ECC/Non-ECC) Dual Channel DDR5 up to 4400 MHz |
| BIOS | AMI SPI 256Mbit |
GRAPHICS
| Controller | Intel® UHD Graphics 700 series |
| Display | 1 x VGA 2 x DP++ 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz |
| Feature | OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 |
| Quad Displays | VGA + 2 DP++ + HDMI |
EXPANSION
| Interface | PCIe x16 (Gen 4) |
| M.2 | 1 x M.2 2230 E key (PCIe/USB 2.0/Intel CNVi/Wifi 6E) 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA) 1 x M.2 2242/2260/2280 M key (default, PCIe x4 Gen3 NVMe share PCIe#6, function selected by BIOS.) |
ETHERNET
| Controller | 1 x Intel® I226-LM support iAMT 1 x Intel® I210-AT 2 x Intel® I226-V |
Interface
| Ethernet | 3 x 2.5GbE (RJ-45) 1 x 1GbE (RJ-45, opt. 2.5GbE) |
| USB | 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 |
| Display | 1 x VGA 2 x DP++ 1 x HDMI |
| Audio | 1 x Line-out 1 x Mic-in |
| Ethernet | 2 x 2.5 GbE (RJ-45) |
| Serial | 2 x RS-232/422/485 |
| SATA | 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 |
| Other Function | WATCHDOG, Nuvoton TPM2.0 |
General
| Power Supply | 400W Redundant power supplier |
| Dimensions (W x D x H) | TBD |
| TBD Mounting | 2U Rack Mount |
| Gross Weight | TBD |
| Operating Temp. | TBD |
| Storage Temp. | -40°C ~ 85°C |
| Storage Humidity | 5%~95% (non-condensing); 95%@75°C |
| Shock | TBD |
| Vibration | TBD |
| Certification | CE, FCC, UKCA, IEC 61850-3(TBD), IEEE 16132(TBD) |
