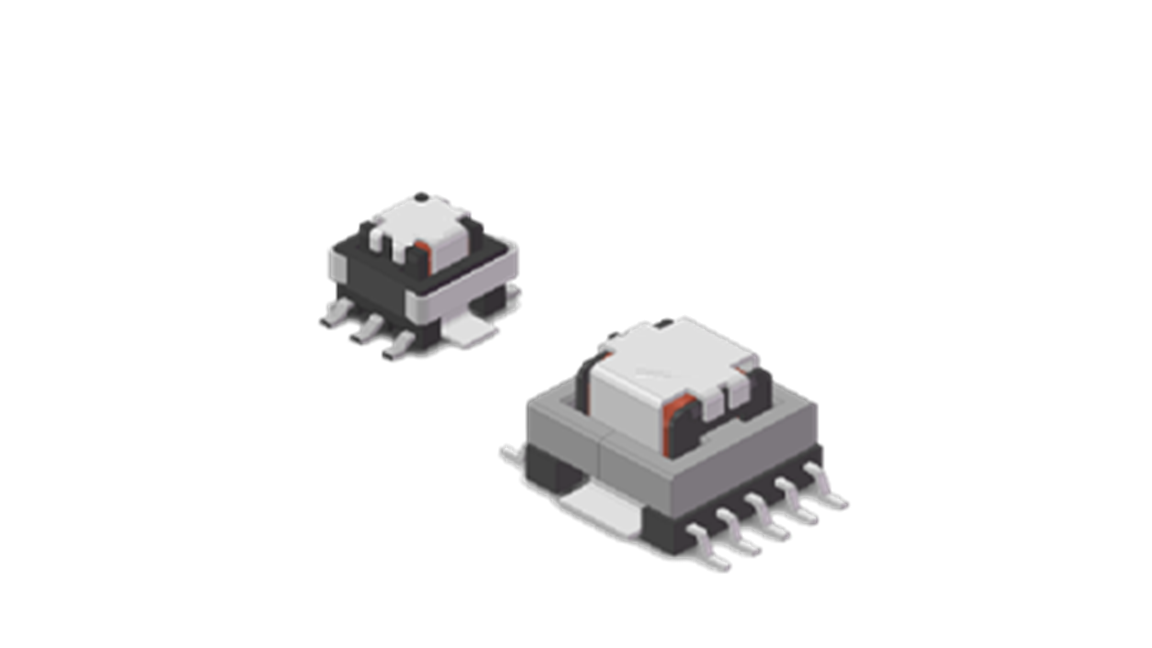

Current Sense Transformer
-
Current Sense Transformer
❖ Introduction
Current sense magnetics are used as a low loss method for sensing
AC current in a circuit and also provide electrical and safety isolation
between the source of the current and the measurement circuit.
The key parameters for a current sense transformer are the
rms current rating (to ensure it does not overheat in the application)
and the safety and voltage isolation (to ensure it conforms to the
end-application requirements). Atech's Current Sense Transformers
Insulation Systems Including Functional, Basic And Reinforced.
Custom Solutions Are Available.
❖ Advantage
• Wide Measuring Range
• Low Ohmic Resistance
• Creepage Distances According To IEC 60664 (Basic Insulation)
• High Dielectric Strength For Compact Design
• Qualified To AEC-Q200
• Wide Range Of Turn Ratios
❖ Application
• Current Measurement On-Board Power Supplies
• AC/DC Inverters In xEV Applications
• Switch-Mode Power Supplies And All Types Of Converters
