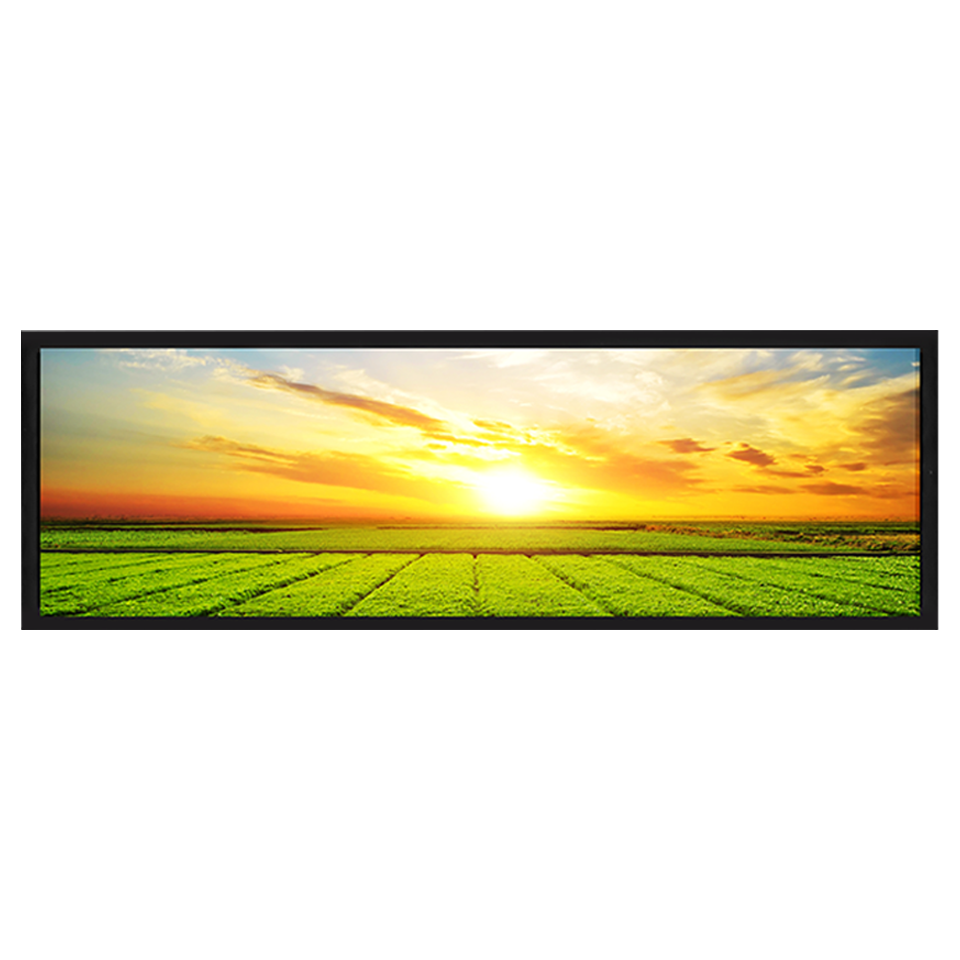

Stretch Digital Display

2445-M

24.4” Resizing LCD, 800 nits LED backlight, MaxRGB, 1920x540
  • 24.4” Resizing LCD
  • Ultra-Wide Screen (16: 4.5)
  • High Brightness 800 nits
  • LED Backlight
  • High Color Saturation
  • Wide viewing angle 178°(H)~ 178°(V)
  • Low Power Consumption
  • BL MTBF: 100,000 hours
Drucken
Anfrage Vergleich

Main Features

  • Wide Viewing Angle

  • MTBF 100K

  • Low Power Consumption

Spezifikationen
Model name SSF2445-M SSH2445-M SSD2445-M
Description 24.4” Resizing LCD, 800 nits LED backlight, MaxRGB, 1920x540
Size 24.4”
Display area (mm) 597.6(H) x 168.075(V)
Brightness 800 cd/m2
Resolution 1920x540
Aspect ratio 16: 4.5
Contrast ratio 4000: 1
Pixel pitch (mm) 0.31125(H) x 0.31125(V)
Pixel per inch (PPI) 81
Viewing angle 178°(H),178°(V)
Color saturation (NTSC) 90%
Display colors 16.7M
Response time (Typical) 20ms
Video interface LVDS HDMI, DP
Input power DC12V
OSD Key 4 Keys (Power Switch, Menu, +, -)
OSD Control Brightness, Color, Contrast, Auto Turing, H/V Position…etc
Power consumption 28.7W 31.7W
Dimensions (mm) 615.3 x 195.38 x 15.65 617.9 x 198 x 42.9
Bezel size (U/B/L/R) 14.9/12.4/8.85/8.85 16.2/13.7/10.1/10.1
Weight (Net) 1.5 kg 3.3 kg
Mounting   VESA 75x75, 250x75
Operating temperature 0 ˚C ~ 50 ˚C
Storage temperature -20 ˚C ~ 60 ˚C
Product approval   CE, FCC
